Description
Product Details :
Catalogue No :
VFS 101
HSN Code :
90261020
Availability :
In Stock

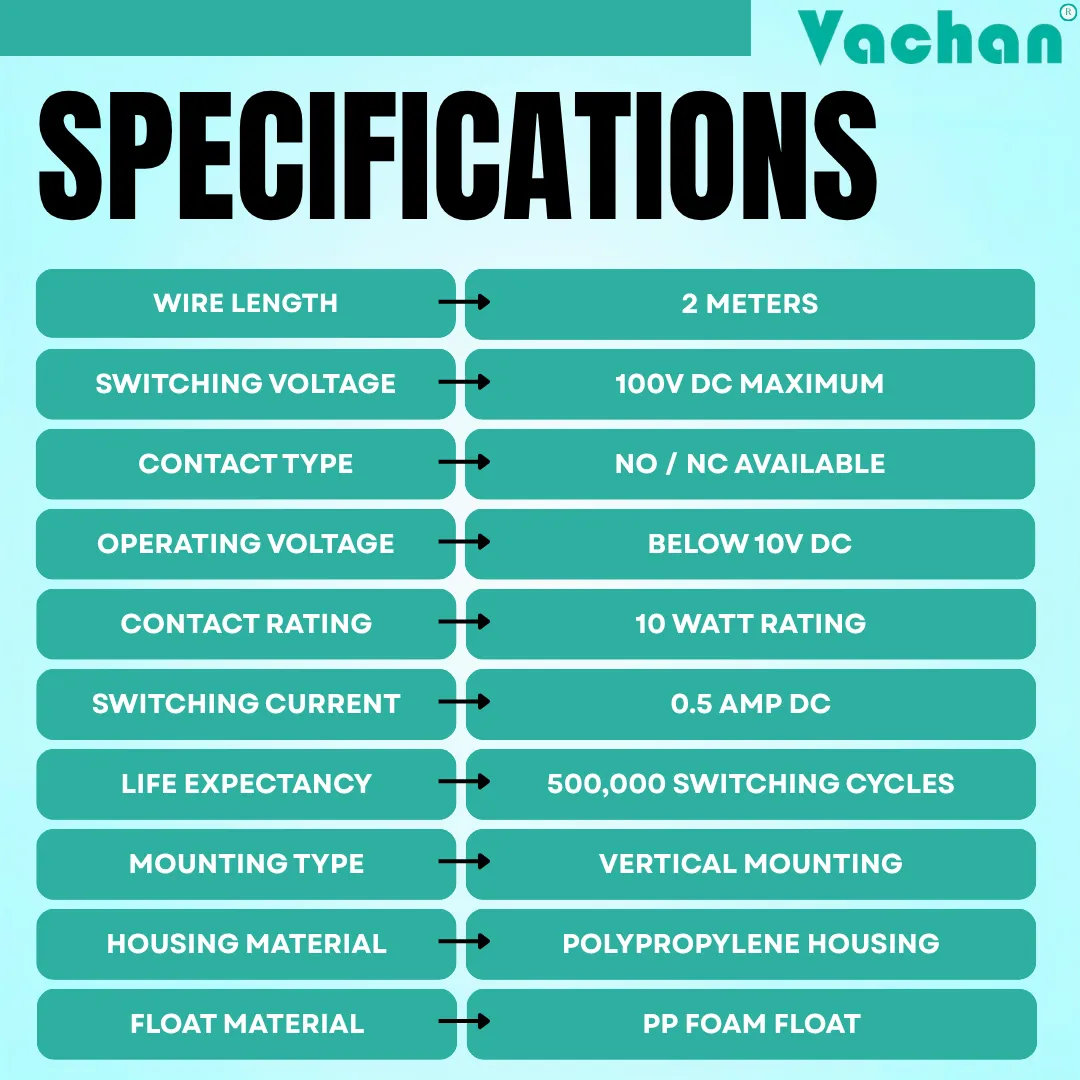

Specifications
| Parameter | Specification |
|---|---|
| Product Model | VFS 101 |
| Product Type | Vertical Magnetic Float Sensor |
| Mounting Type | Vertical |
| Float Sensor Type | Vertical Float Sensor |
| Cable Length | 2 Meters |
| Maximum Switching Voltage | 100 VDC |
| Contact Type | NO / NC Available |
| Maximum Operating Voltage | < 10 VDC |
| Maximum Operating Current | < 50 mA DC |
| Contact Rating | 10 Watts |
| Maximum Switching Current | 0.5 Amp DC |
| Switching Life | 500,000 Cycles |
| Housing Material | Polypropylene (PP) |
| Float Material | PP Foam |
| Potting Material | PU / Epoxy |
| Operating Principle | Magnetic Reed Switch |
| Suitable Medium | Water & Compatible Liquids |
| Brand | Vachan® |
| Country of Origin | India |
Dimensions
Parameter | Specification |
|---|---|

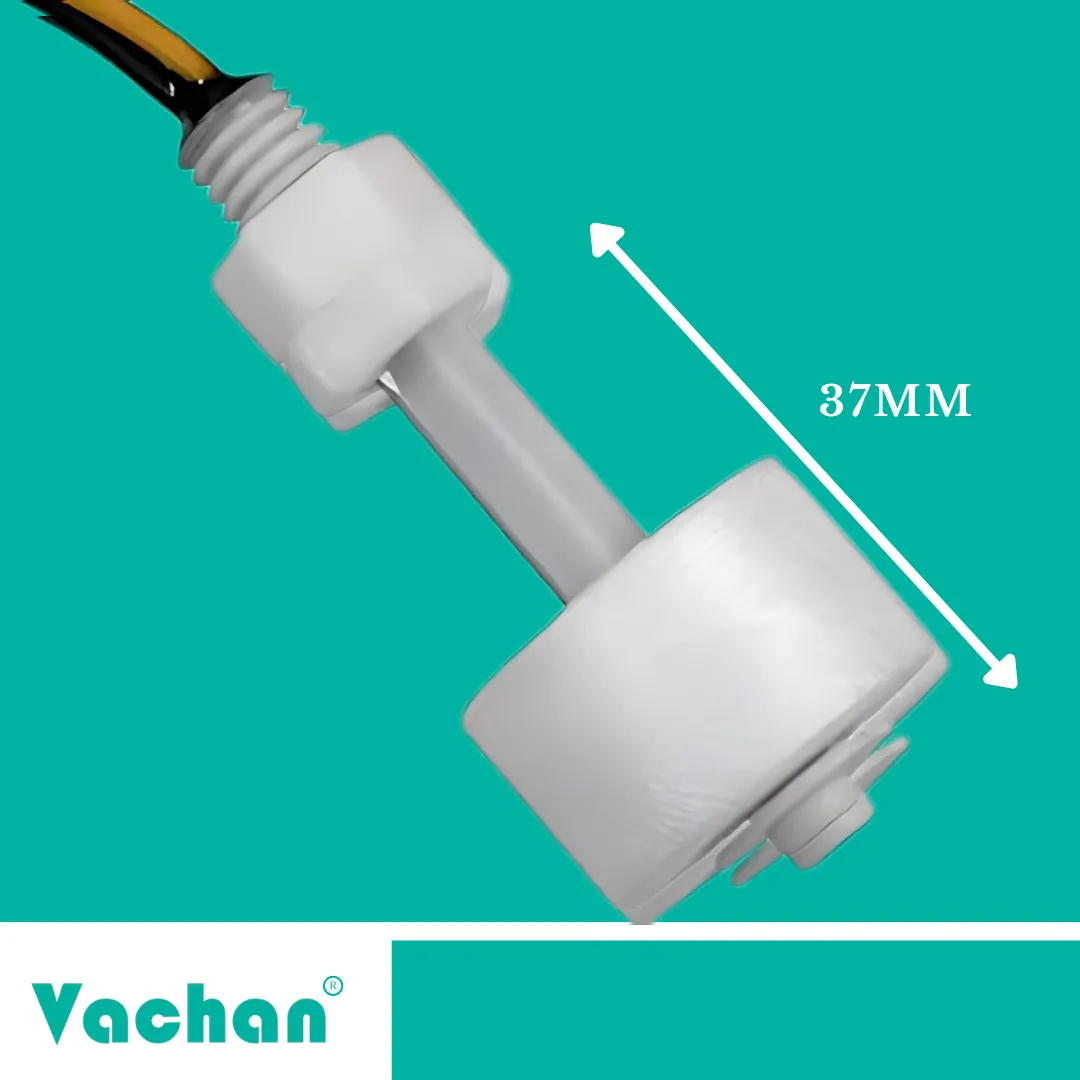

| Overall Length | 37 mm |
| Mounting Type | Vertical |
| Float Design | Cylindrical PP Float |
| Mounting Thread | Standard Vertical Thread |
| Cable Length | 2 Meters |
| Housing Diameter | Compact Design |
| Float Material | PP Foam |
| Housing Material | Polypropylene (PP) |
Features
- High reliability magnetic reed switch.
- Compact vertical mounting design.
- Durable polypropylene (PP) housing.
- Lightweight PP foam float.
- NO and NC contact options.
- Excellent chemical resistance.
- Long mechanical service life.
- Easy installation and maintenance.
- Low power switching operation.
- Suitable for various liquid levels.
Applications
- Overhead water tanks
- Underground water tanks
- RO water systems
- Water purification units
- Industrial process tanks
- Chemical storage tanks
- Coolant reservoirs
- Pump control panels
- Water treatment plants
- Liquid level monitoring systems

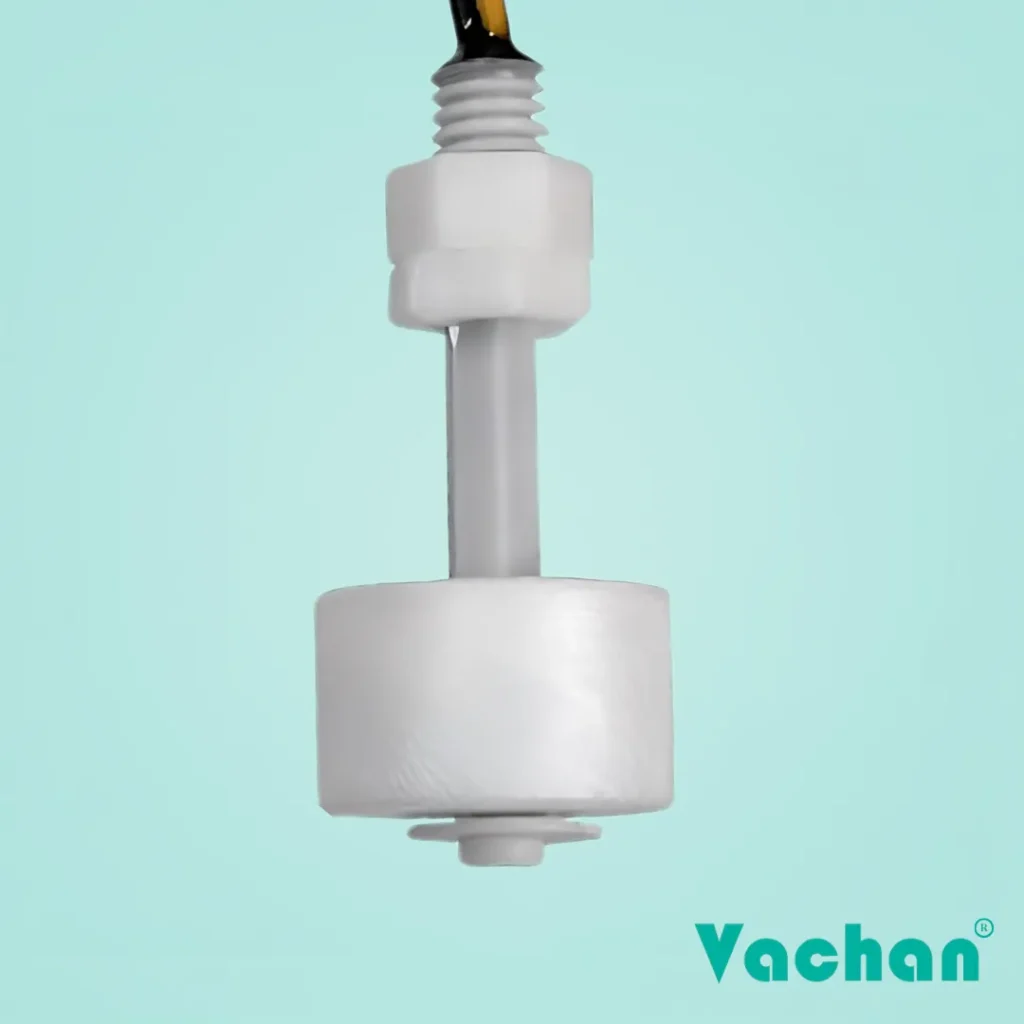

VFS 101 Vertical Magnetic Float Sensor for Water & Liquid Level Detection
The VFS 101 Vertical Magnetic Float Sensor from Vachan® is a compact and reliable liquid level sensing solution designed for accurate water and liquid level detection in residential, commercial, and industrial applications. Utilizing a precision magnetic reed switch mechanism, this sensor provides dependable switching performance for automatic liquid level monitoring and control. Its compact vertical design makes it ideal for installations where space is limited while ensuring smooth and accurate float movement.
Manufactured using a durable polypropylene (PP) housing and a lightweight PP foam float, the VFS 101 offers excellent resistance to water, chemicals, moisture, and corrosion. The sensor is available with Normally Open (NO) and Normally Closed (NC) contact configurations, allowing it to be integrated easily into various control systems, including pump controllers, alarm systems, and automated liquid level monitoring equipment. With a 100 VDC maximum switching voltage, 10 W contact rating, and 0.5 Amp DC maximum switching current, it is well suited for low-voltage industrial and commercial applications.
The VFS 101 is widely used in overhead water tanks, underground reservoirs, RO plants, water treatment systems, industrial process tanks, chemical storage tanks, coolant reservoirs, and liquid level control panels. Its sealed construction, long switching life of up to 500,000 cycles, and maintenance-free operation make it a dependable choice for continuous level sensing. Backed by Vachan®’s commitment to quality, the VFS 101 delivers long-lasting performance, easy installation, and accurate liquid level detection for a wide range of water management and industrial automation applications.
