Water Level Sensors / Magnetic Float Sensors

What is a Magnetic Float Sensor?

A Magnetic Float Sensor is an electromechanical device used to detect the level of liquids inside tanks, vessels, reservoirs, pipelines, and process equipment. It operates by using a floating element that moves with the liquid level and activates an internal magnetic reed switch whenever the liquid reaches a predetermined position. This simple yet highly reliable design enables automatic monitoring and control of liquid levels without requiring complicated electronic sensing systems.

Magnetic Float Sensors are widely used because they offer dependable switching, long service life, low maintenance requirements, and easy installation. Unlike continuous level transmitters that provide variable outputs, most Magnetic Float Sensors function as ON/OFF switches, making them ideal for automatic pump control, overflow protection, dry-run prevention, alarm systems, and liquid level automation.

The technology is suitable for monitoring water, oils, coolants, compatible chemicals, and many other liquids depending on the sensor material and application. Vachan manufactures multiple configurations including Vertical Magnetic Float Sensors, Horizontal Float Sensors, Side Mounted Float Sensors, Pipe Mounted Float Sensors, Stainless Steel Float Sensors, and Cable Suspended Float Switches, allowing customers to select the most suitable solution for their installation.

Because of their simplicity and reliability, Magnetic Float Sensors are extensively used in water treatment plants, pump manufacturing, RO systems, HVAC equipment, industrial automation, food processing, pharmaceutical plants, chemical industries, and residential water management systems. Their ability to provide accurate liquid level detection while requiring minimal maintenance makes them one of the most preferred water level sensing technologies available today.

How Does a Magnetic Float Sensor Work?

The operating principle of a Magnetic Float Sensor is simple, reliable, and highly effective. Inside the sensor body is a sealed reed switch, while the float contains a permanent magnet. As the liquid level rises or falls, the float moves along the stem or pivots depending on the sensor design. When the magnet reaches the position of the reed switch, it changes the electrical state of the switch by either opening or closing the circuit.

This change in electrical contact can then be used to activate pumps, trigger alarms, control solenoid valves, switch indicator lights, or communicate with PLCs and automation controllers. Because the reed switch remains completely sealed, it is protected from moisture, dust, and contamination, significantly increasing reliability and service life.

Certain models, such as Reversible Magnetic Float Sensors, allow users to select Normally Open (NO) or Normally Closed (NC) operation simply by reversing the float orientation. Dual-float and multi-level sensors provide multiple switching points, allowing more advanced automation and liquid level monitoring within a single sensor assembly.

This proven operating principle has made Magnetic Float Sensors one of the most trusted technologies for water level detection, liquid level monitoring, pump automation, and industrial process control around the world.

Types of Water Level Sensors Offered by Vachan

Every application has different installation requirements, liquid characteristics, and automation needs. For this reason, Vachan manufactures a comprehensive portfolio of Water Level Sensors and Magnetic Float Sensors designed for residential, commercial, industrial, and OEM applications.

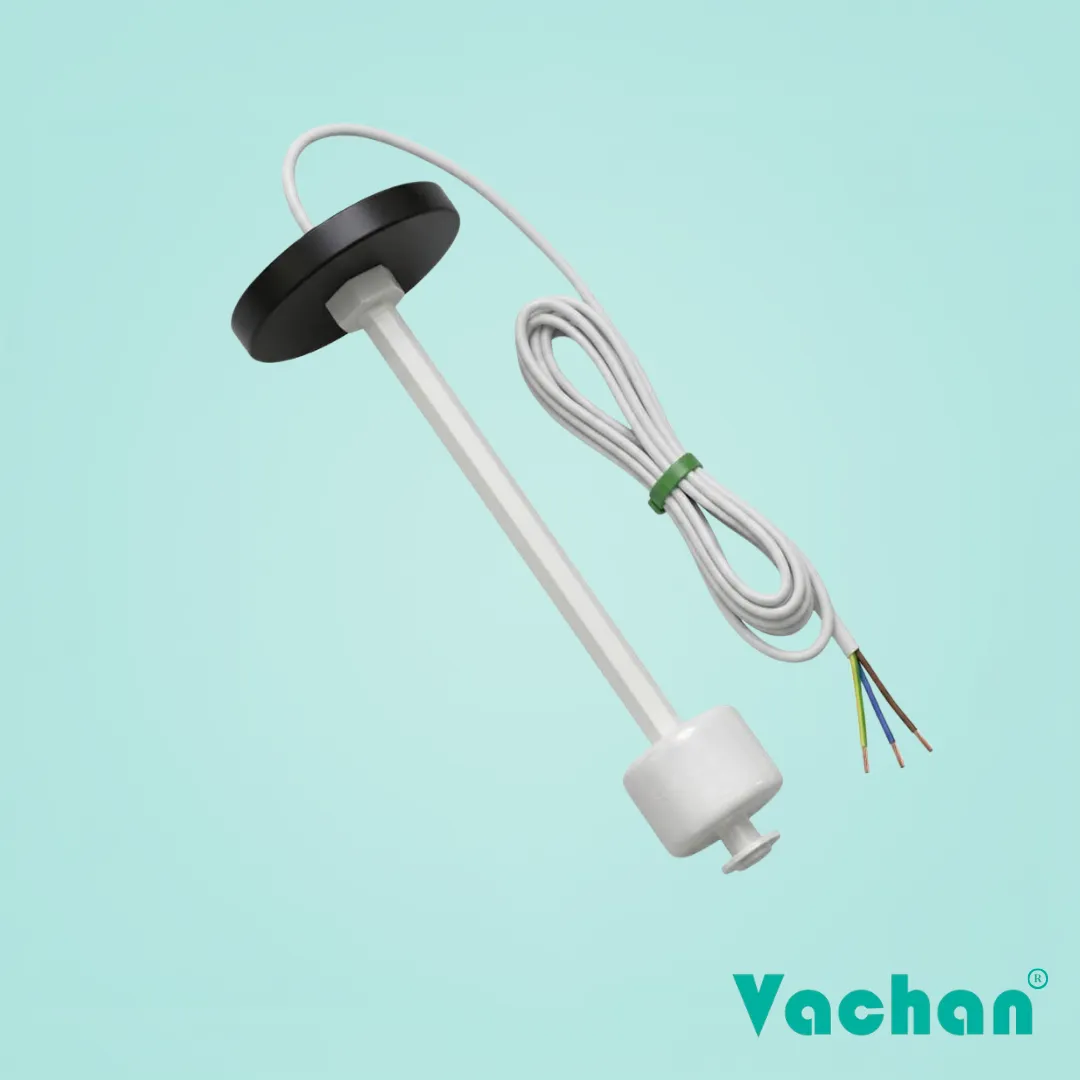

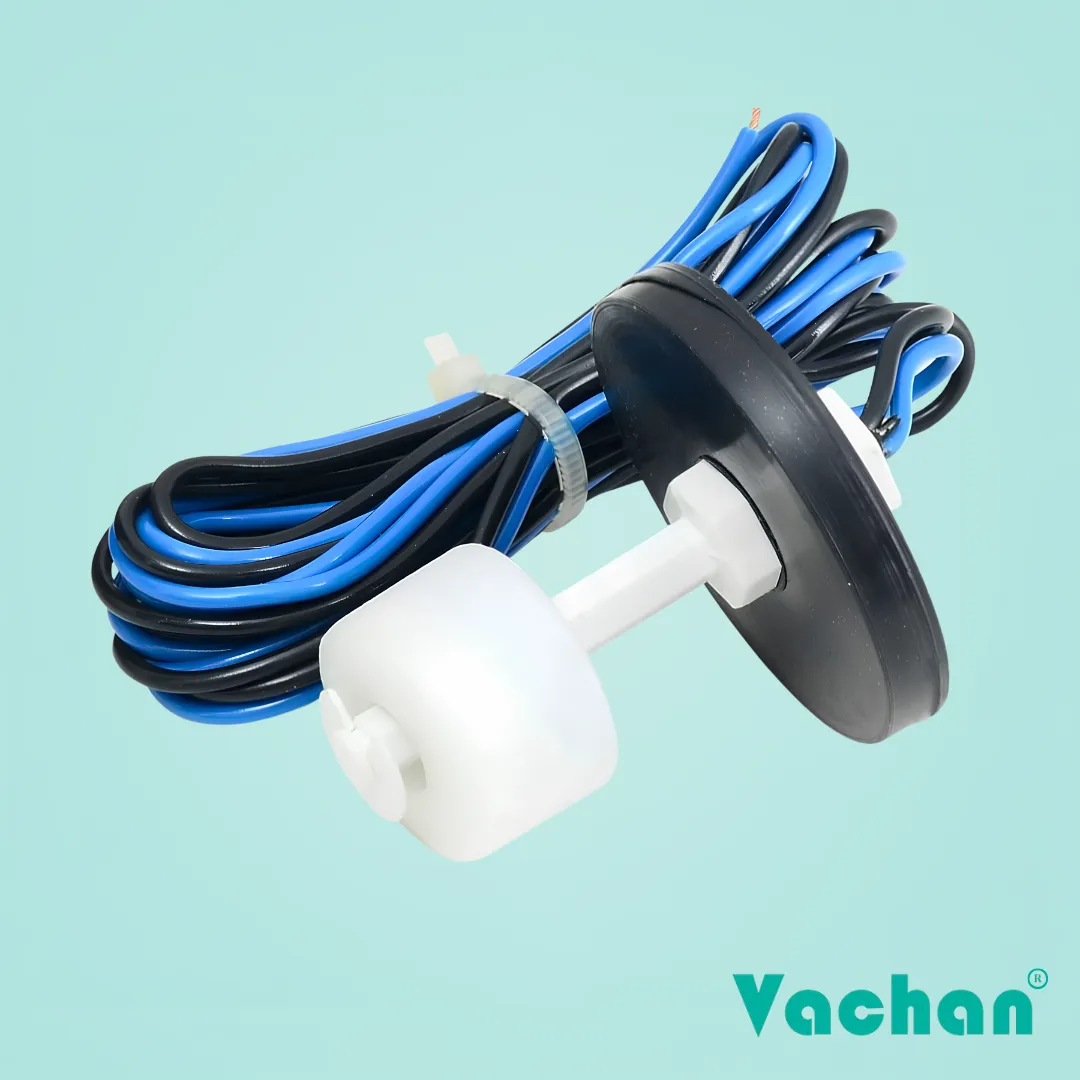

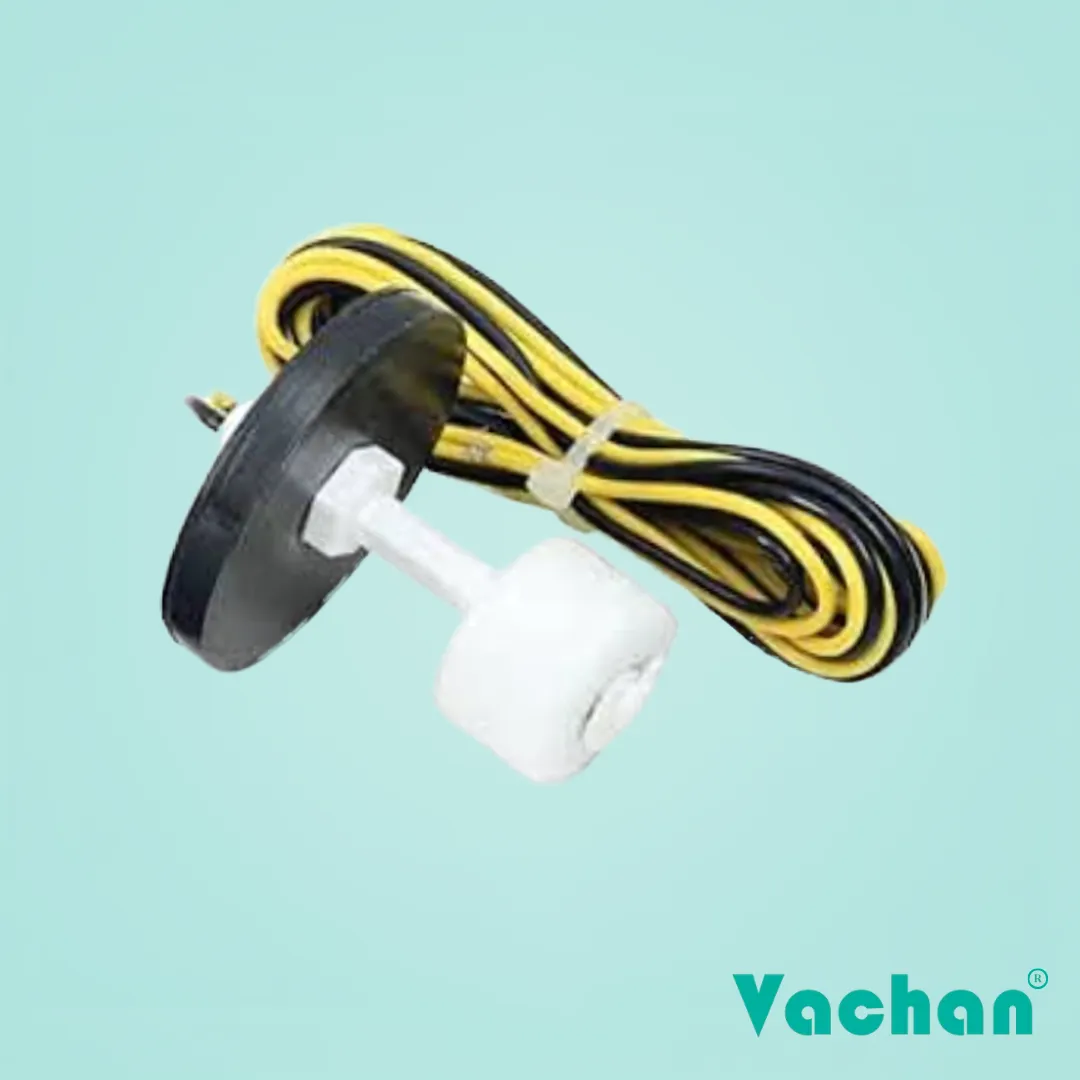

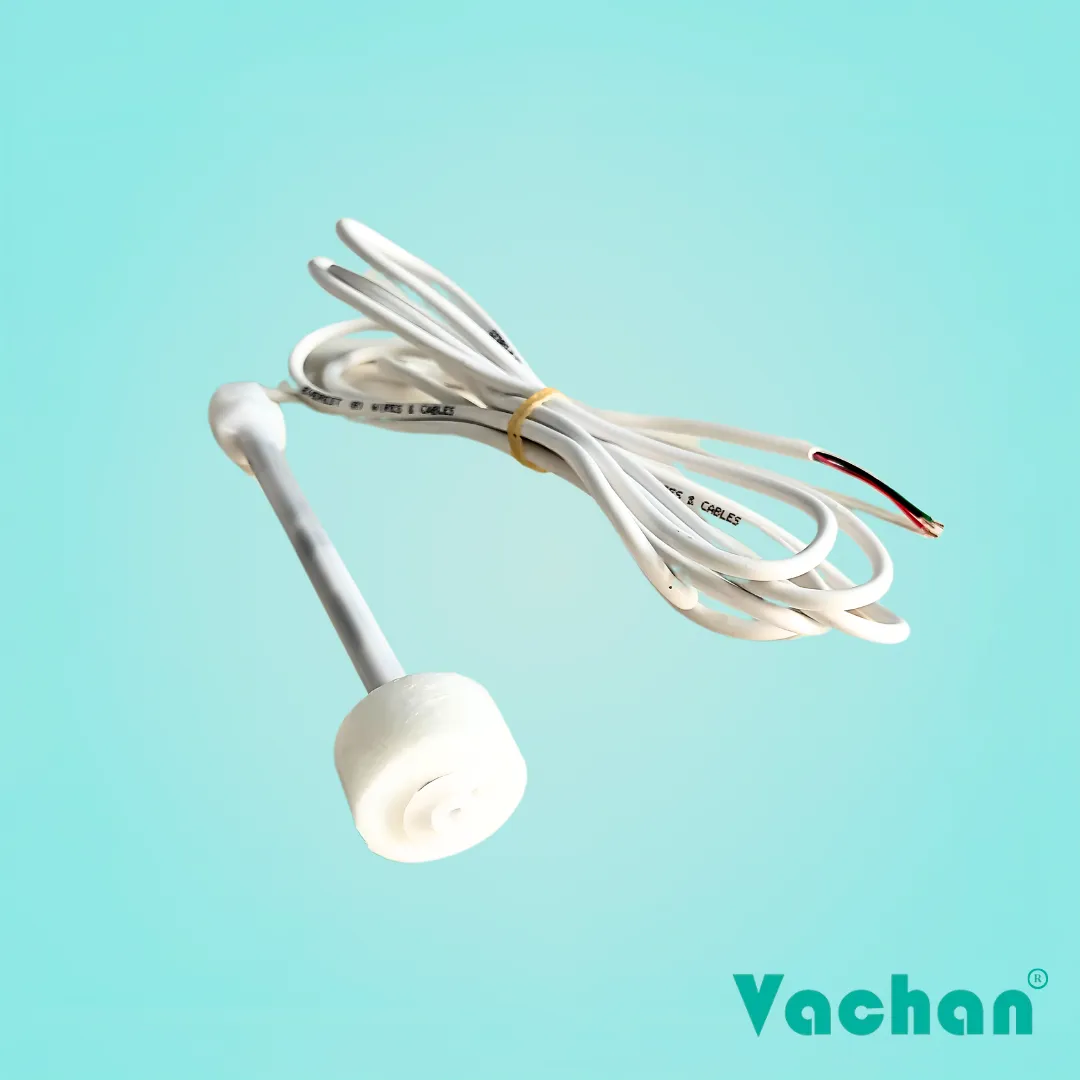

Vertical Magnetic Float Sensors

Vertical Magnetic Float Sensors are the most commonly used solution for water tanks, reservoirs, RO systems, and industrial vessels. Installed from the top or bottom of a tank, they provide accurate ON/OFF switching while occupying minimal space. Vachan’s vertical range includes VFS-101, VFS-102, VFS-103, VFS-104, VFS-105, VFS-106, and VFS-107, covering single-level, dual-level, and reversible switching requirements.

Horizontal & Side Mounted Float Sensors

Horizontal and Side Mounted Float Sensors are ideal where vertical installation is not practical. These sensors mount through the side wall of a tank and provide dependable liquid level detection in compact spaces. Vachan offers VFS-108, VFS-109, VFS-118, and VFS-120, suitable for water tanks, industrial containers, OEM equipment, and process automation systems.

Pipe Mounted Magnetic Float Sensors

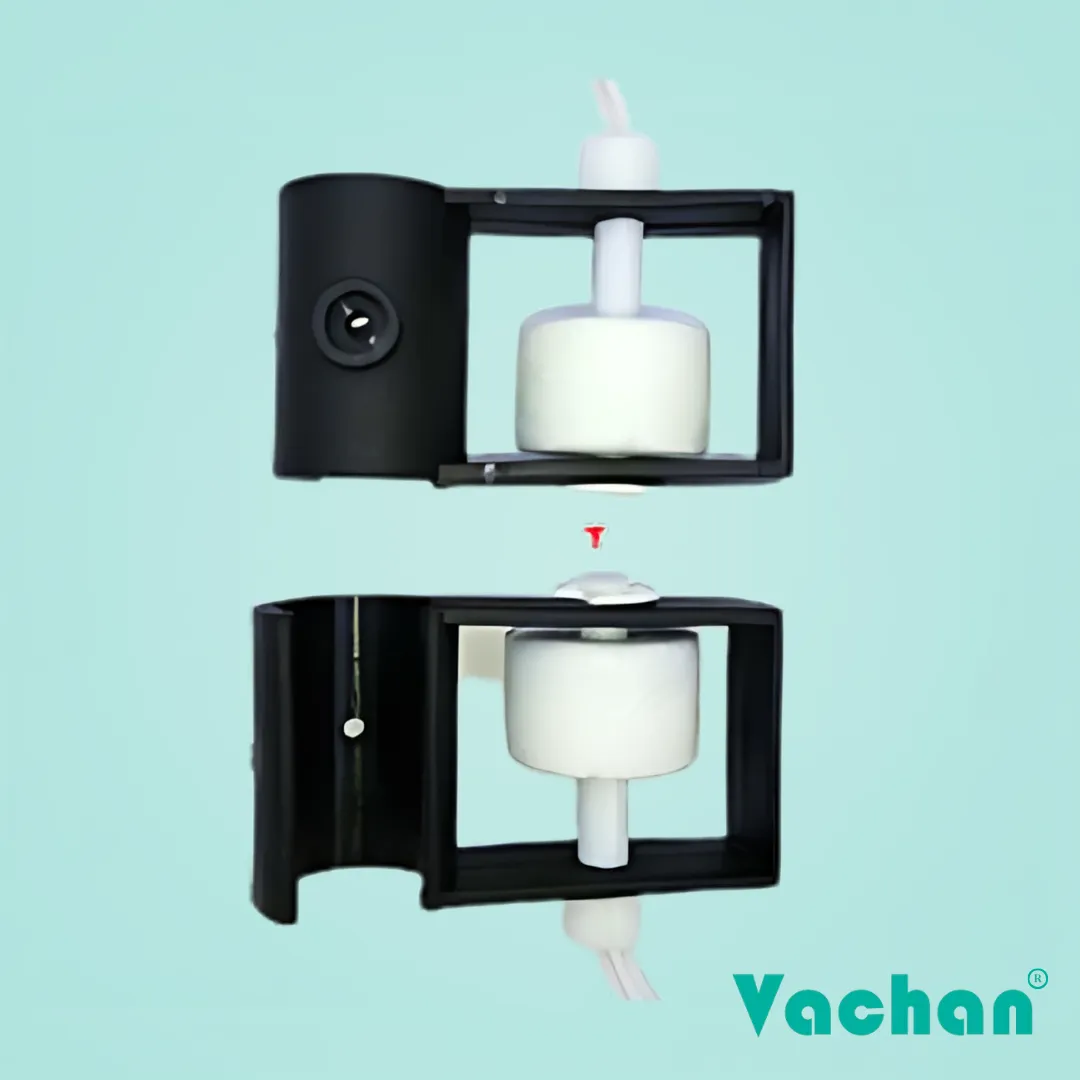

Pipe-mounted sensors are specifically designed for installations where level detection is required within pipelines or process vessels. The VFS-110 Pipe Mounted Magnetic Float Sensor provides dependable water level monitoring with secure installation, making it ideal for industrial automation and water management systems.

Automatic Water Level Controllers

For applications requiring automatic pump operation and water level management, Vachan offers dedicated controller solutions including the VFS-111 24V DC Magnetic Float Switch for RO water purifiers and the VFS-112 Automatic Water Level Controller for water coolers, dispensers, and storage systems. These products help automate water filling, prevent overflow, and improve operational efficiency.

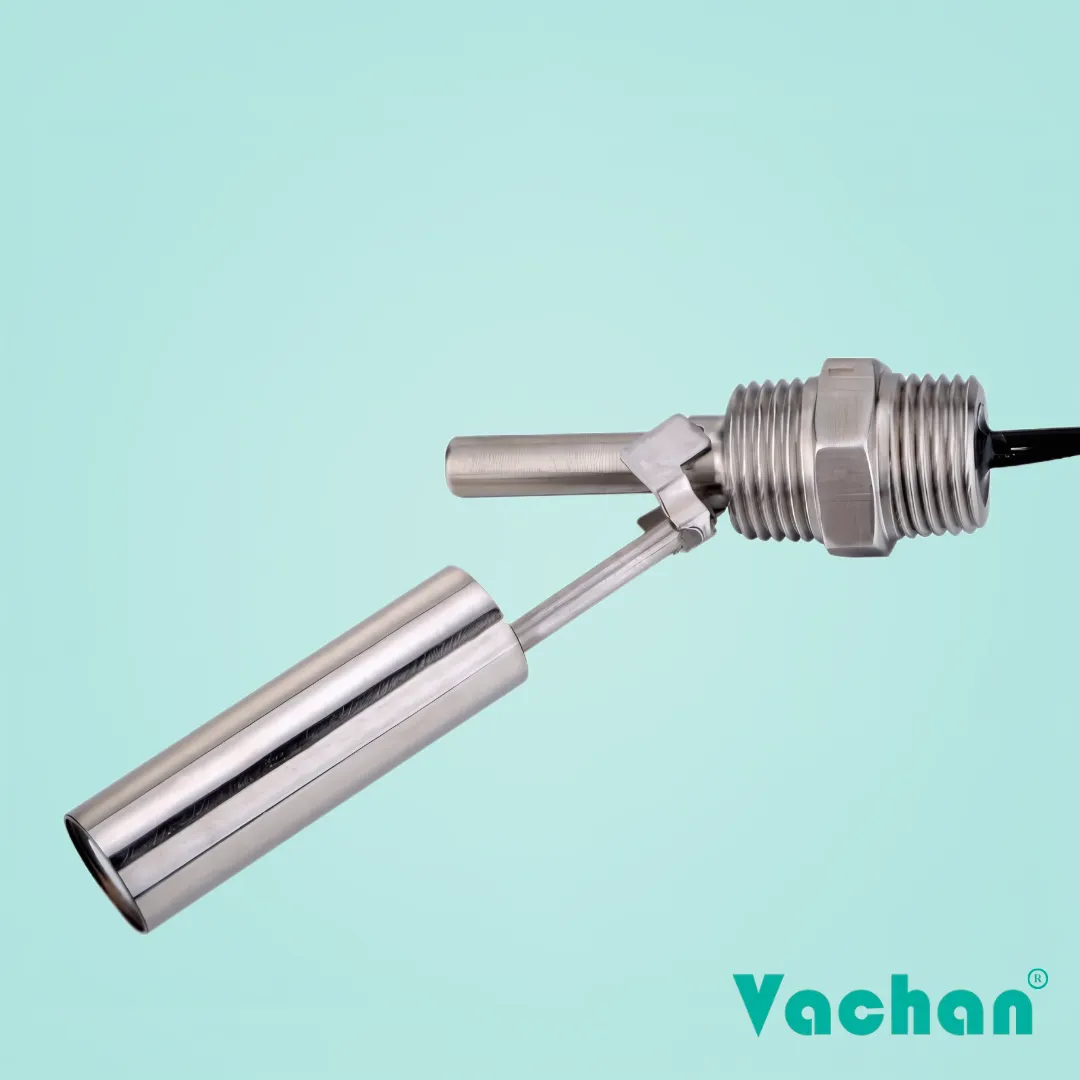

Stainless Steel Float Sensors

Industrial applications often require sensors capable of withstanding corrosion, high temperatures, and aggressive environments. Vachan’s stainless steel range includes VFS-113, VFS-121, and VFS-122, providing reliable liquid level detection with premium SS304 and SS316 construction for demanding industrial processes.

Pressure & Flow Sensors

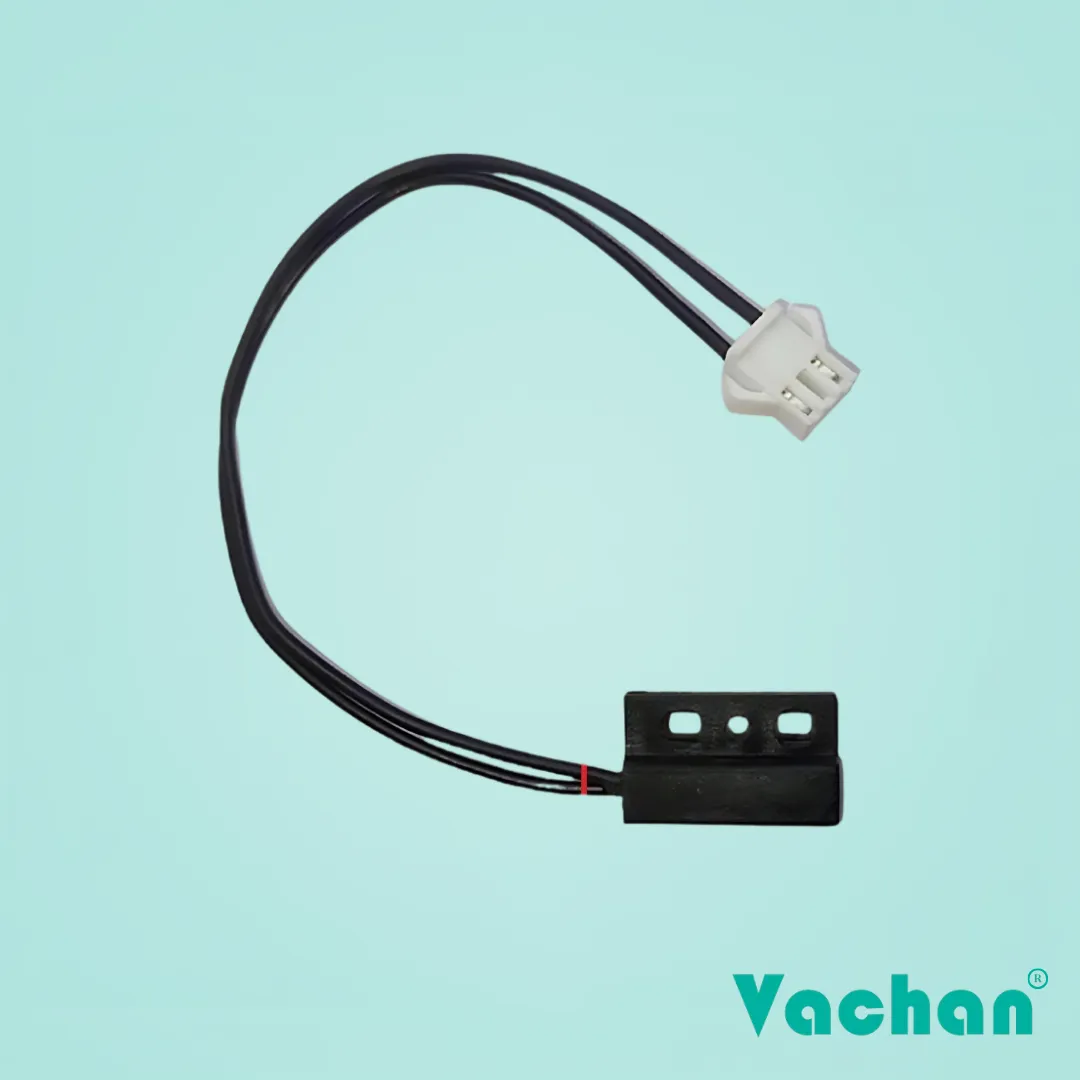

Beyond liquid level monitoring, Vachan also manufactures specialized sensing solutions for pressure and flow detection. The VFS-114 Inline Pressure Sensor is designed for gas geysers and water heating systems, while the VFS-117 Inline Flow Sensor provides accurate liquid flow monitoring for industrial water systems and automation applications.

Water Level Sensor Probes

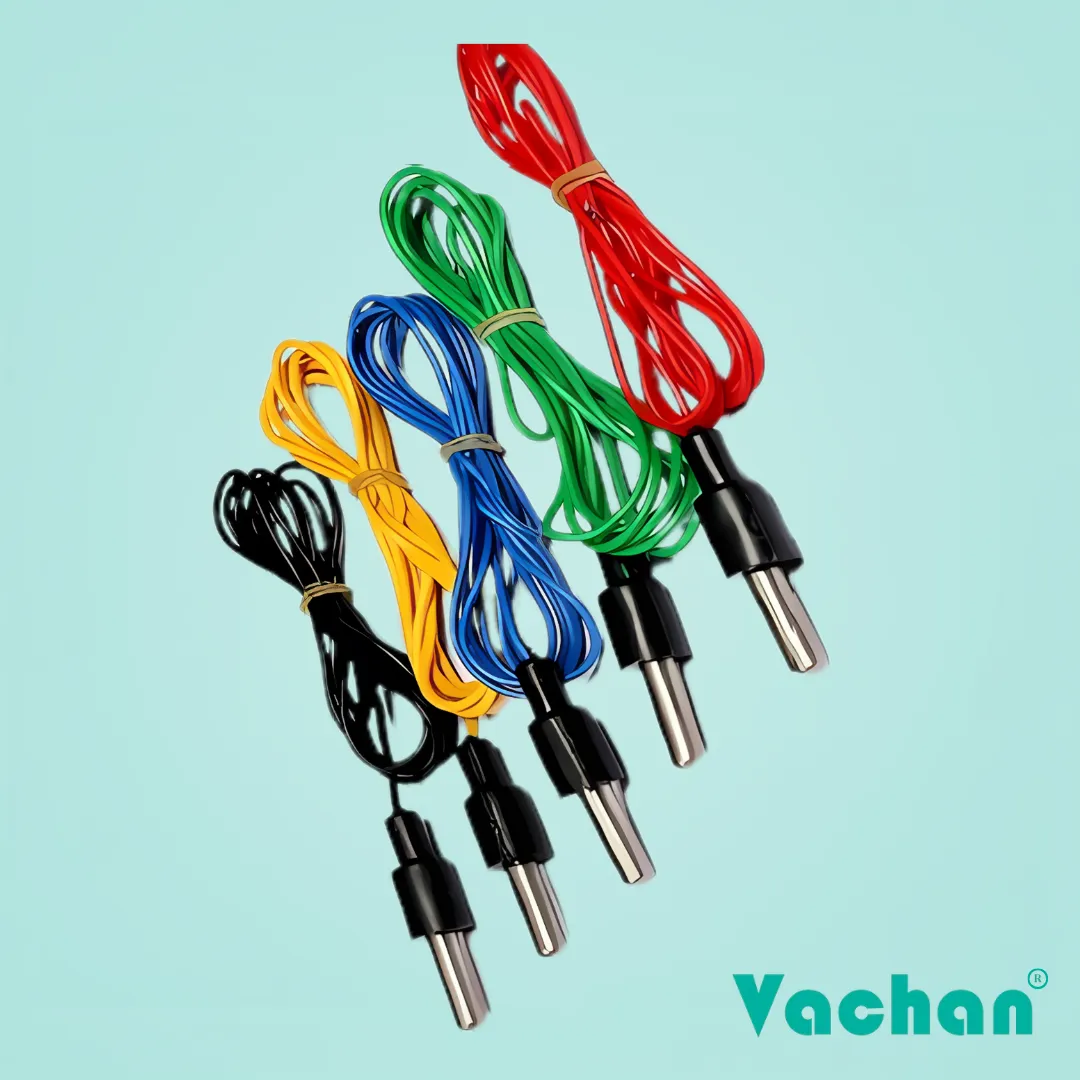

The VFS-116 SS316 Water Level Sensor Probe operates using conductivity-based level sensing and is widely used with automatic water level controllers. Manufactured from corrosion-resistant stainless steel, it delivers dependable performance in residential and industrial water management systems.

Reed Switch Sensors

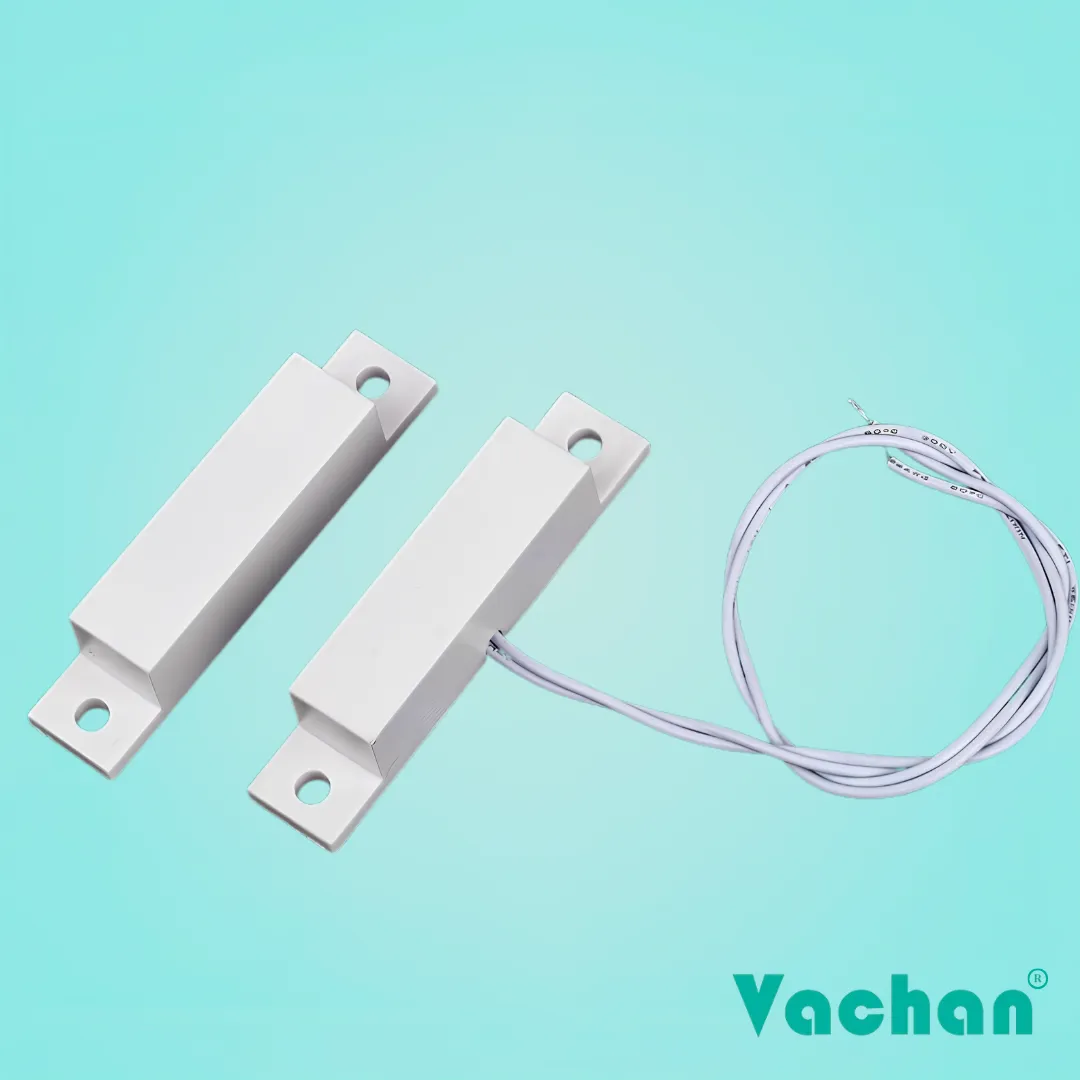

The VFS-115 Magnetic Reed Door Sensor extends Vachan’s sensing solutions beyond liquid level monitoring into security and access control applications. Its compact design and reliable magnetic switching make it suitable for residential, commercial, and industrial automation projects.

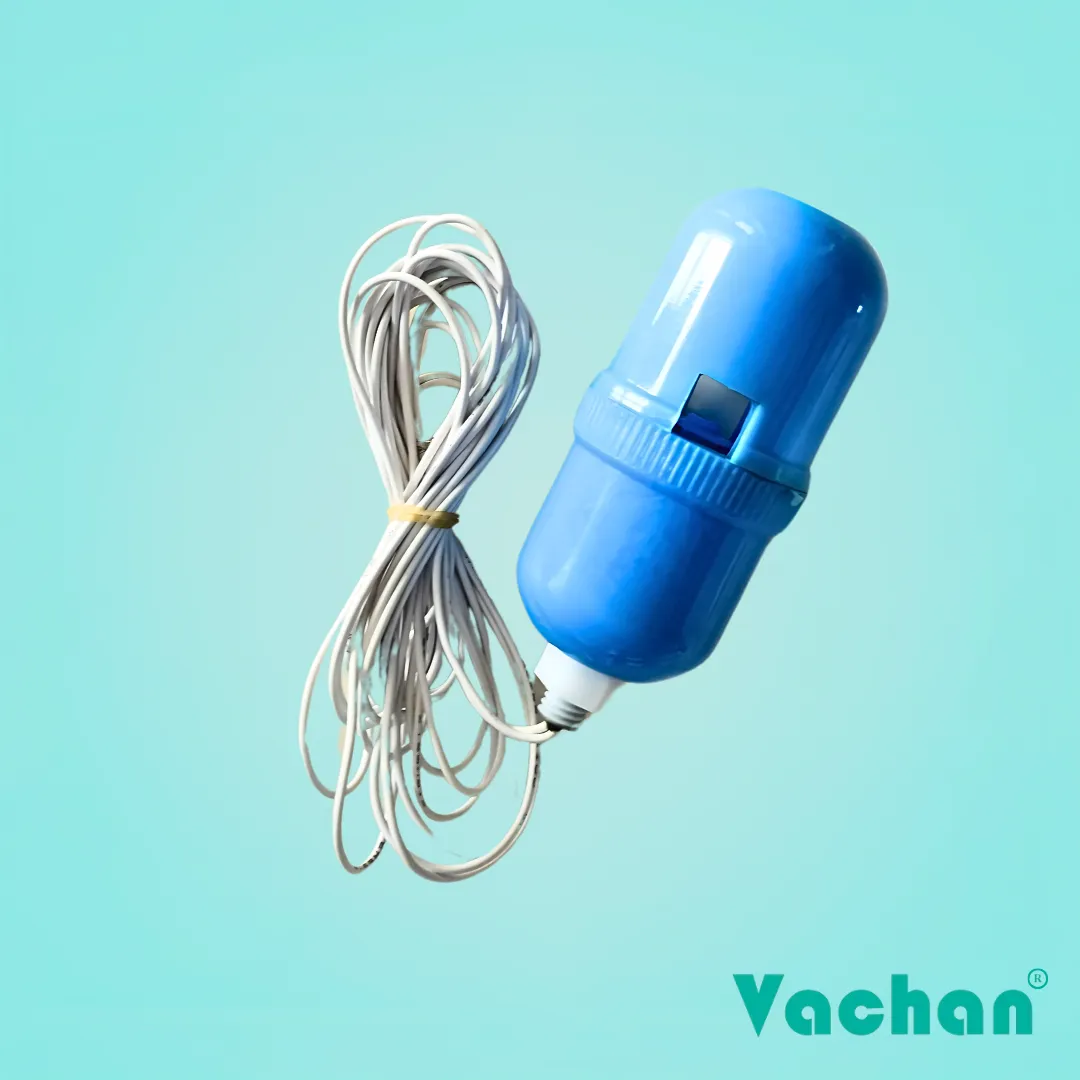

Cable Suspended Float Switches

The VFS-123 Cable Suspended Magnetic Float Level Switch is designed for large tanks, reservoirs, sewage systems, and industrial storage applications where suspended level sensing offers greater flexibility. Its rugged construction and reliable switching performance make it an ideal choice for automatic pump control and high-capacity liquid storage systems.

Which Water Level Sensor Should You Choose?

Selecting the right Water Level Sensor or Magnetic Float Sensor depends on the type of liquid, installation method, operating environment, and automation requirements. Since every application is different, choosing the correct sensor ensures accurate level detection, reliable switching, and long service life while reducing maintenance and system downtime.

For overhead water tanks, underground tanks, and storage reservoirs, Vertical Magnetic Float Sensors provide a simple and dependable solution for automatic pump control and water level monitoring. Models such as VFS-101, VFS-102, VFS-103, VFS-104, VFS-105, VFS-106, and VFS-107 are ideal where vertical installation is possible.

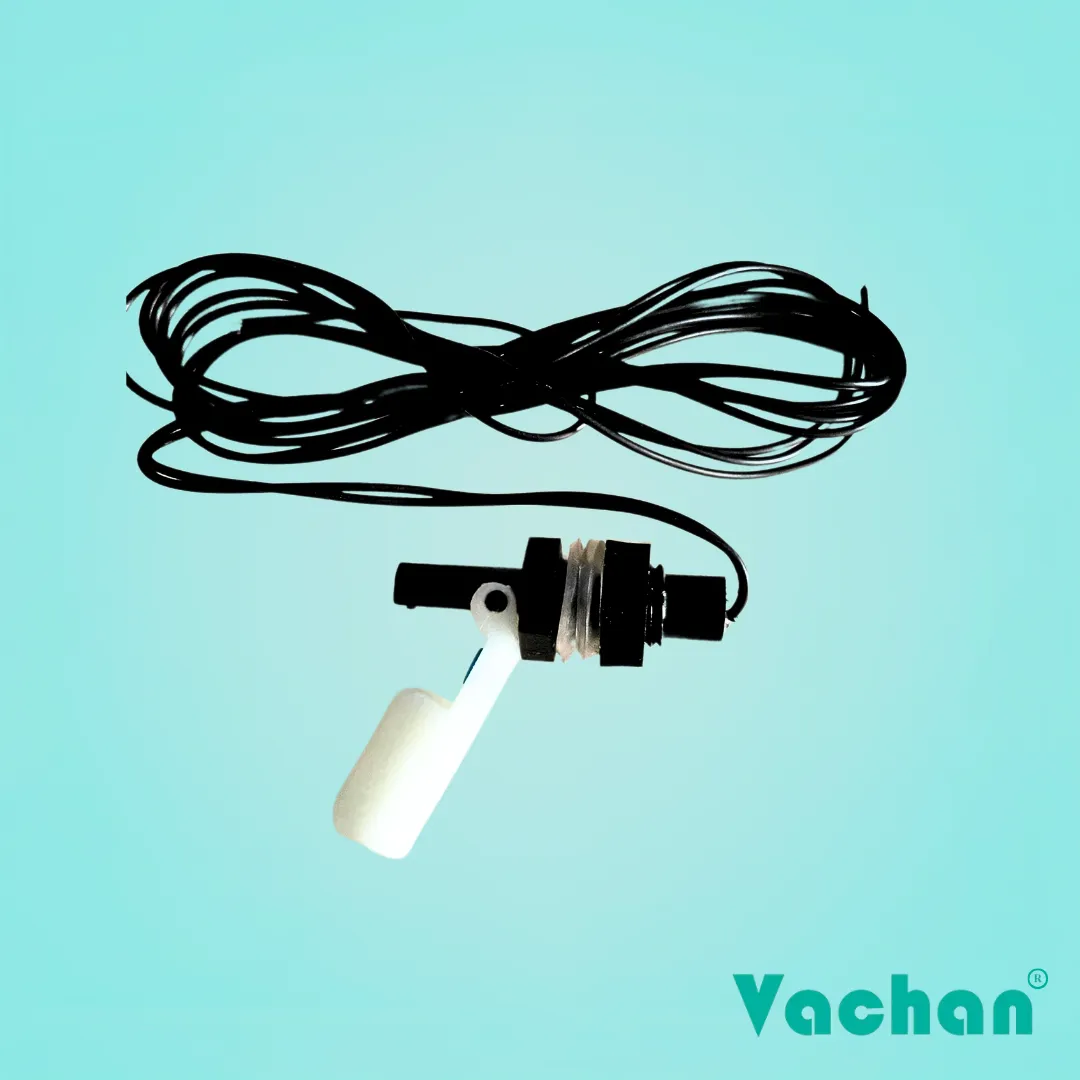

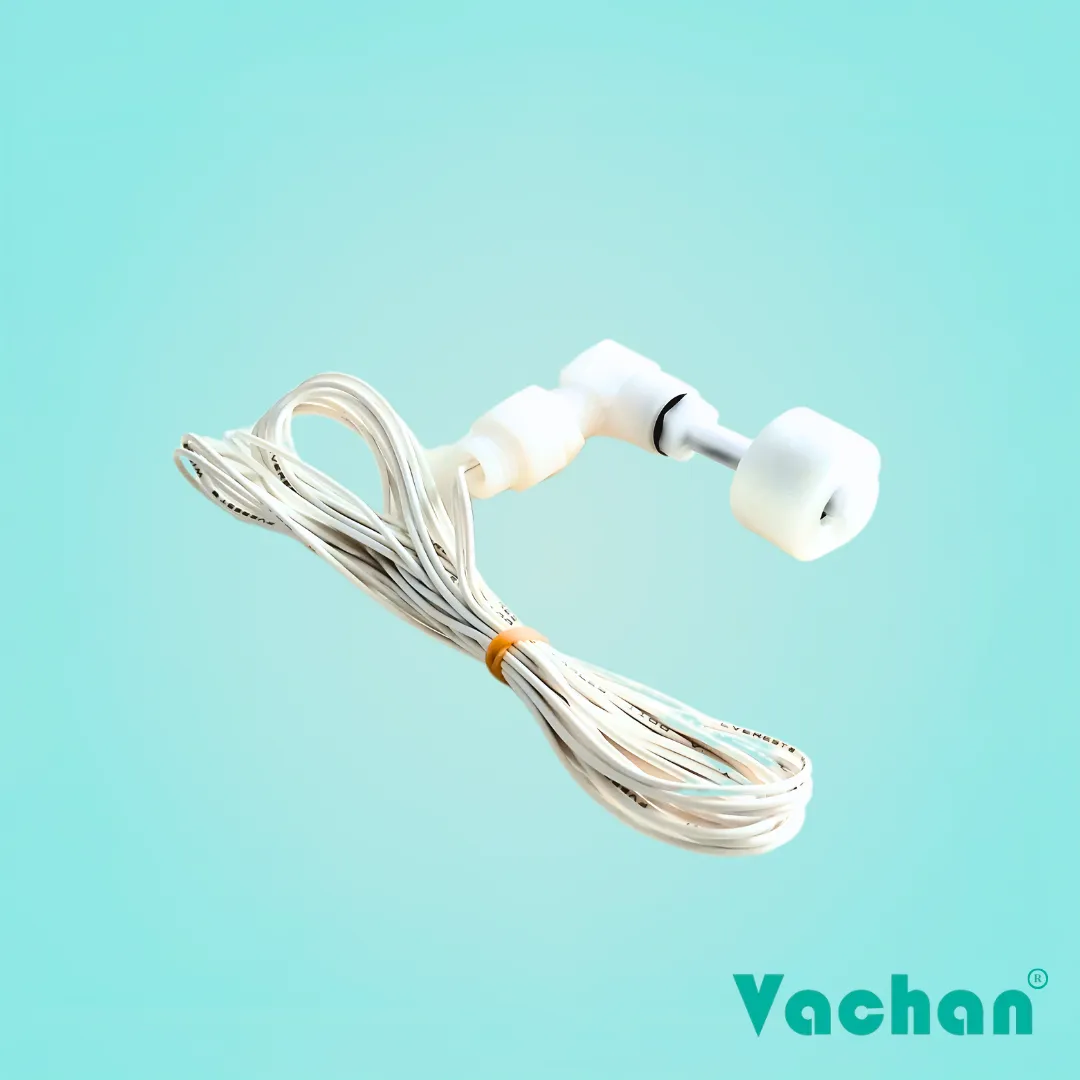

Where installation space is limited or top mounting is not practical, Horizontal and Side Mounted Float Sensors such as VFS-108, VFS-109, VFS-118, and VFS-120 offer reliable liquid level monitoring while occupying minimal space.

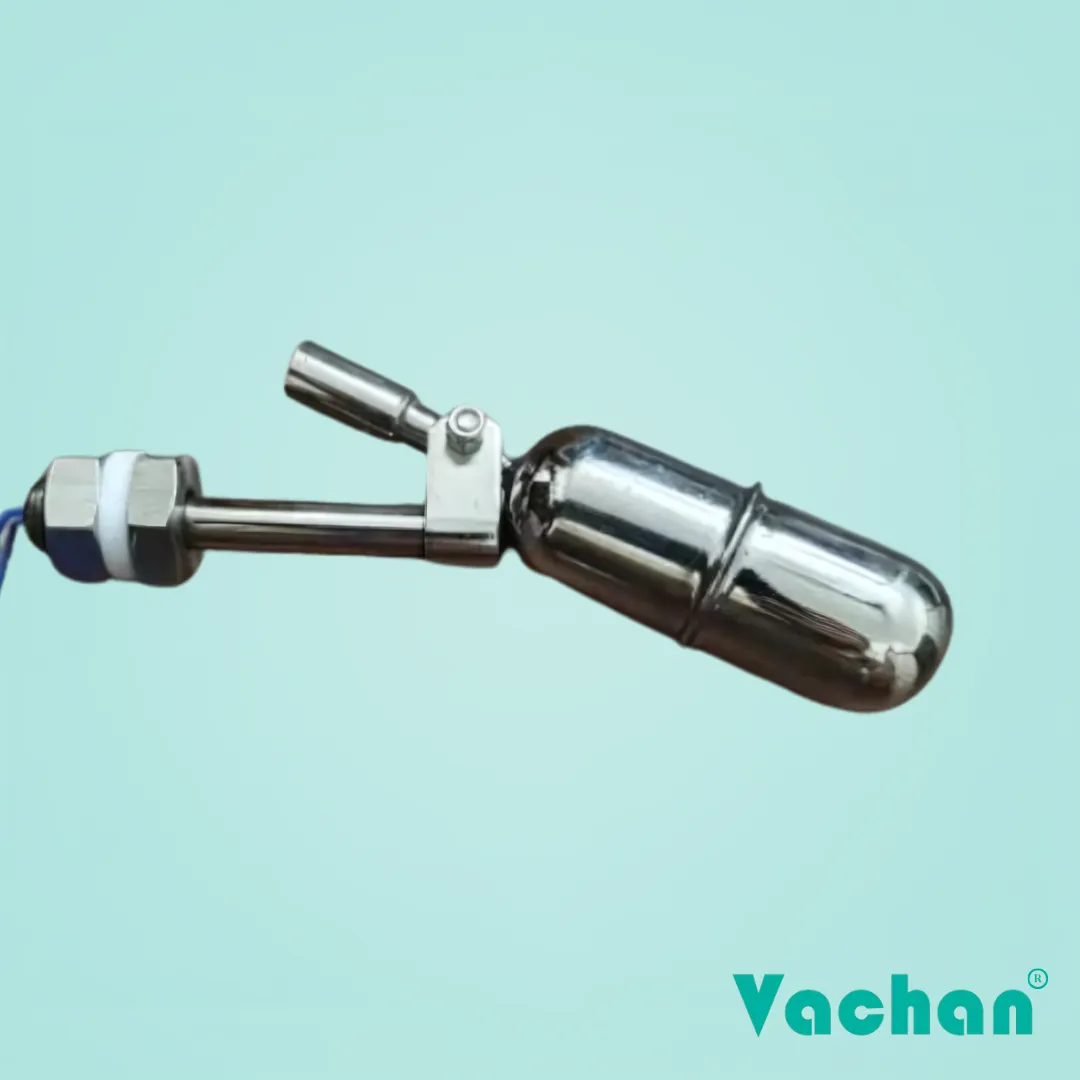

Applications involving high temperatures, corrosive liquids, or demanding industrial environments benefit from Stainless Steel Magnetic Float Sensors like VFS-113, VFS-121, and VFS-122, which provide superior corrosion resistance and long-term durability.

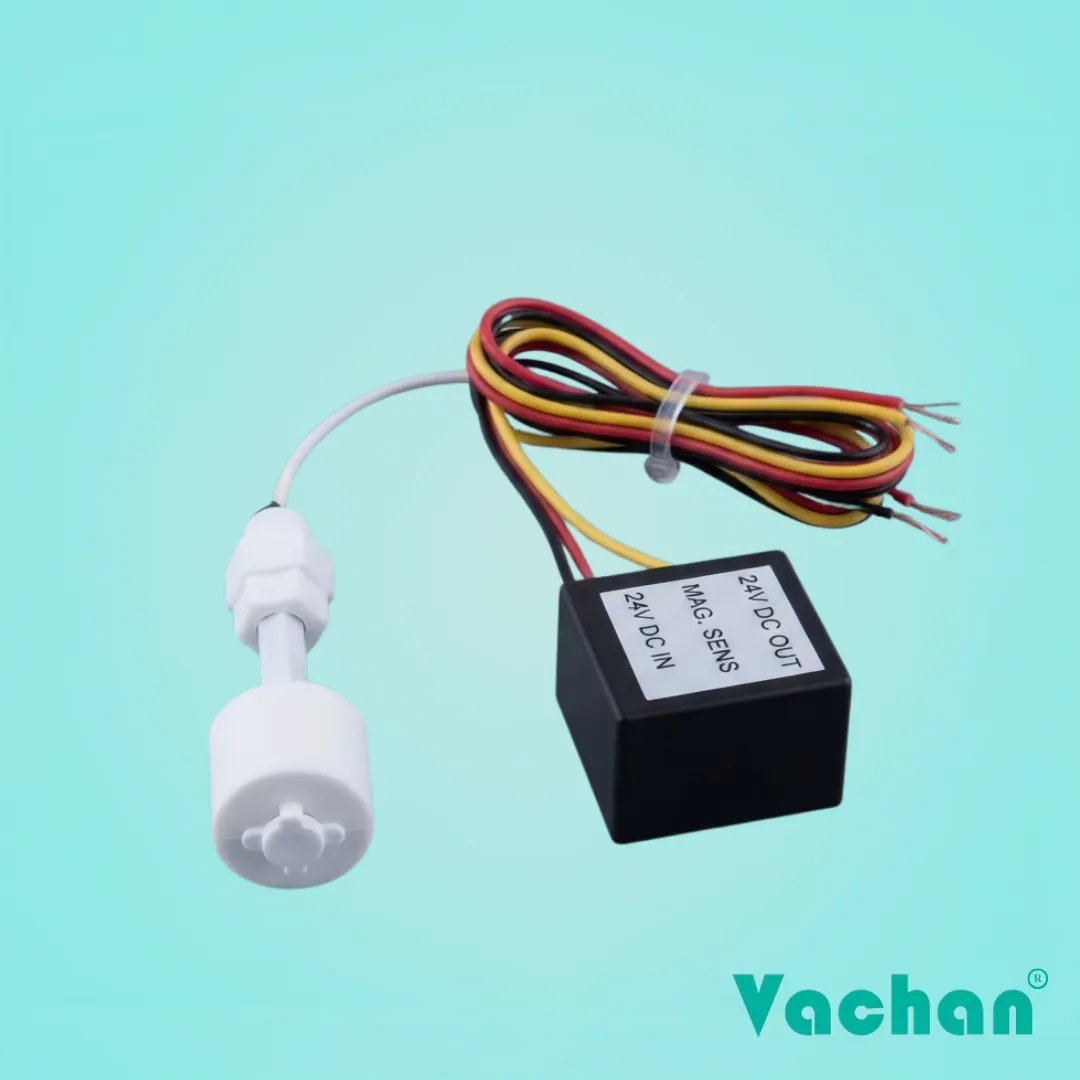

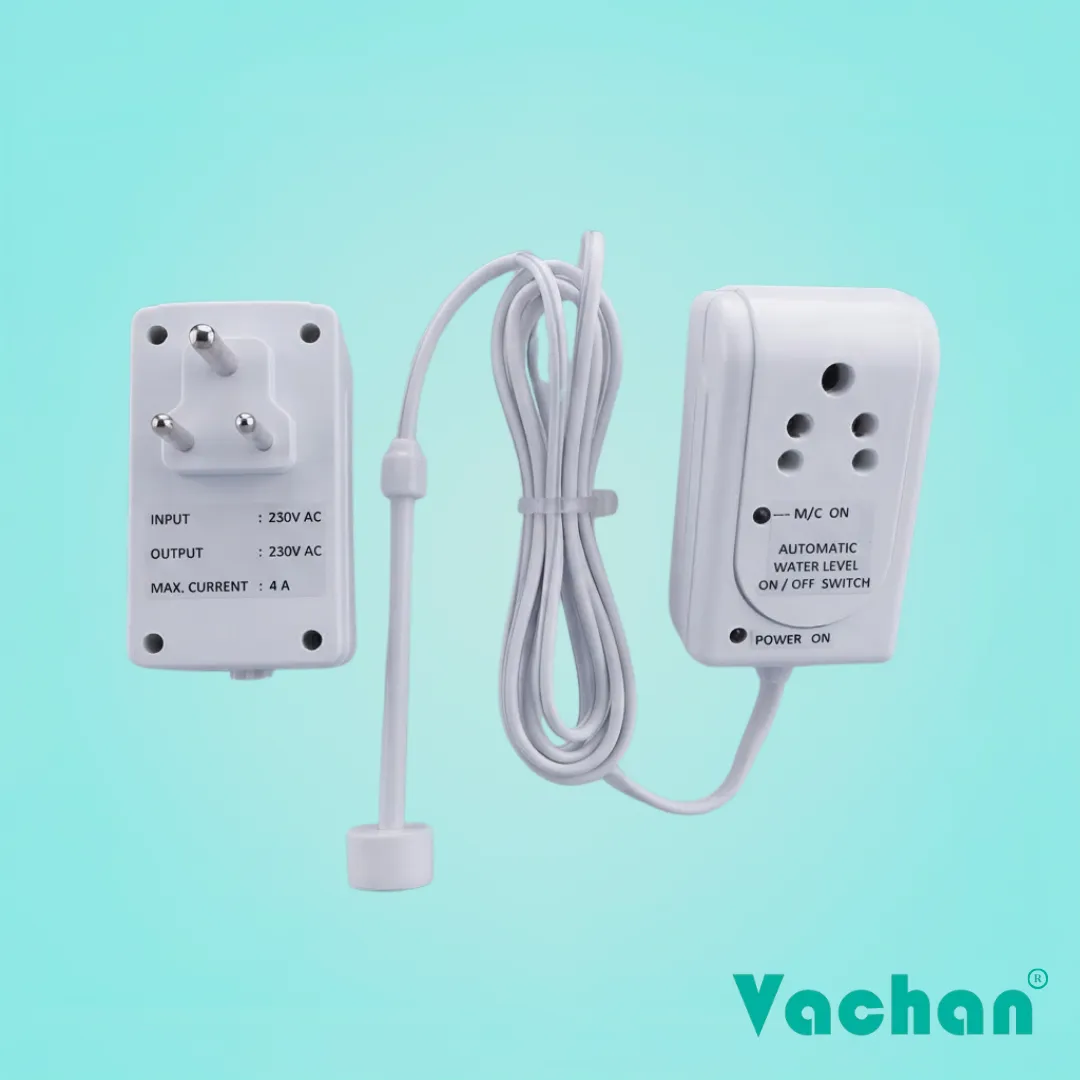

For RO water purifiers, VFS-111 offers reliable 24V DC level sensing, while VFS-112 is ideal for automatic water level control in water coolers and dispensers.

If your application requires flow monitoring, pressure sensing, conductivity-based level detection, or security monitoring, Vachan also offers dedicated solutions including VFS-114, VFS-115, VFS-116, and VFS-117.

By understanding the installation environment and application requirements, customers can confidently select the most suitable Water Level Sensor for dependable performance and efficient system automation.

Key Features of Vachan Magnetic Float Sensors

Vachan Magnetic Float Sensors are engineered to deliver dependable performance across a wide range of residential, commercial, and industrial applications. Every sensor is manufactured using premium-quality materials and precision components to ensure consistent operation and long service life.

Our sensors feature compact and space-saving designs, making them suitable for installations where space is limited. The use of magnetic reed switch technology ensures accurate and reliable switching without complex electronics, reducing maintenance while improving overall system reliability.

Depending on the application, sensors are available in plastic, SS304, and SS316 stainless steel constructions, providing excellent resistance to corrosion, moisture, and harsh industrial environments. Customers can choose from vertical, horizontal, side-mounted, pipe-mounted, and cable suspended configurations, allowing easy integration into virtually any liquid level monitoring system.

Many models support Normally Open (NO) or Normally Closed (NC) operation, while dual-level and multi-level sensors enable advanced automation using a single sensor assembly. Combined with simple installation, low maintenance requirements, and dependable long-term performance, Vachan sensors offer an ideal solution for modern liquid level monitoring.

Advantages of Magnetic Float Sensors over Traditional Water Level Sensors

Choosing the correct sensing technology plays a vital role in the reliability and efficiency of any liquid level monitoring system. Compared with many traditional sensing methods, Magnetic Float Sensors offer several practical advantages that make them one of the most widely used solutions across residential, commercial, and industrial applications.

Unlike purely mechanical float mechanisms, Magnetic Float Sensors use a sealed reed switch, reducing wear while improving switching reliability. Compared to conductivity probes, they are less affected by water quality variations and do not depend on the liquid’s conductivity for operation. They also require significantly less calibration than many electronic sensing technologies, making installation and maintenance easier.

Magnetic Float Sensors are known for their simple construction, long operating life, and dependable performance. They consume minimal power, require very little maintenance, and can be installed in a wide variety of tanks, vessels, and process equipment. Their versatility allows them to monitor water, oils, coolants, compatible chemicals, and many other liquids depending on the sensor design and materials.

These advantages make Magnetic Float Sensors a cost-effective and dependable solution for automatic pump control, overflow prevention, dry-run protection, industrial automation, and liquid level monitoring.

Common Problems Solved by Magnetic Float Sensors

Manual monitoring of liquid levels is time-consuming, inaccurate, and often leads to unnecessary equipment failures. Magnetic Float Sensors eliminate these challenges by providing automatic and reliable liquid level detection.

One of the most common problems is water tank overflow, which results in water wastage and increased operating costs. Magnetic Float Sensors automatically detect high water levels and can stop pumps or activate alarms before overflow occurs.

Another frequent issue is dry running of pumps, where pumps continue operating after the water source becomes empty. Dry running can damage pump seals, increase motor temperature, and significantly reduce equipment life. Float Sensors help prevent this by detecting low water levels and switching the pump off automatically.

Industrial facilities also rely on Water Level Sensors to maintain process consistency, monitor storage tanks, control filling operations, and protect equipment from operating outside safe liquid levels. In addition, automated level sensing reduces manual inspection, improves operational efficiency, minimizes downtime, and supports reliable system automation.

Applications of Water Level Sensors

Water Level Sensors and Magnetic Float Sensors are used across numerous industries where accurate liquid level detection and automatic control are essential.

They are commonly installed in overhead water tanks, underground storage tanks, RO water purification systems, water treatment plants, industrial process tanks, chemical storage vessels, cooling systems, food processing equipment, pharmaceutical plants, agricultural irrigation systems, HVAC systems, pump control panels, commercial water storage systems, and wastewater treatment facilities.

From simple residential water management to sophisticated industrial automation, Vachan sensing solutions help improve operational efficiency, reduce maintenance costs, and protect valuable equipment through dependable liquid level monitoring.

Industries That Use Magnetic Float Sensors

The versatility of Magnetic Float Sensors makes them suitable for a broad range of industries where liquid level monitoring and automation are essential.

These sensors are widely used by pump manufacturers, water treatment companies, RO system manufacturers, industrial automation companies, electrical panel builders, HVAC manufacturers, food and beverage processing plants, chemical industries, pharmaceutical manufacturers, textile industries, agricultural equipment manufacturers, and commercial building management systems.

Their ability to deliver reliable switching, simple installation, and long service life makes them an ideal sensing solution for both OEM manufacturing and replacement applications.

How to Choose the Right Water Level Sensor

Selecting the right Water Level Sensor begins with understanding the application’s operating conditions. Customers should first determine the type of liquid being monitored, followed by the required mounting method, available installation space, operating temperature, switching configuration, and construction material.

Applications involving corrosive liquids or elevated temperatures generally require SS316 Stainless Steel Float Sensors, while standard water monitoring applications may use engineering plastic or SS304 sensors. Buyers should also determine whether a Normally Open, Normally Closed, Single-Level, Dual-Level, or Multi-Level switching arrangement is required.

Considering these factors before selecting a sensor helps ensure accurate level detection, reliable operation, and long-term performance while minimizing maintenance requirements.

Why Choose Vachan Magnetic Float Sensors?

Vachan has established itself as a trusted manufacturer of Magnetic Float Sensors, Water Level Sensors, and Liquid Level Switches by combining precision engineering with dependable manufacturing quality.

Our product portfolio includes one of the industry’s most comprehensive ranges, covering Vertical, Horizontal, Side Mounted, Pipe Mounted, Stainless Steel, Cable Suspended, Flow, Pressure, and Reed Switch Sensors for diverse industrial and commercial applications.

Every sensor undergoes strict quality inspections to ensure reliable switching performance, accurate dimensions, and consistent long-term operation. In addition to standard products, Vachan supports OEM manufacturers with dependable supply, technical guidance, and application-specific solutions that help customers integrate reliable sensing technology into their equipment.

Installation & Maintenance Tips

Proper installation plays a significant role in the accuracy and reliability of any Water Level Sensor. Before installation, users should verify the correct mounting orientation and ensure that the sensor moves freely without obstruction.

Electrical wiring should follow the recommended specifications, and all connections should be checked for secure contact before commissioning the system. During routine maintenance, sensors should be inspected for accumulated dirt, scale, or debris that could restrict float movement.

Periodic functional testing helps verify reliable switching performance and allows worn components to be replaced before they affect system operation. Following proper installation and maintenance practices helps maximize sensor life while ensuring dependable liquid level monitoring.

Contact Vachan for Premium Magnetic Float Sensors & Water Level Sensors

Whether you require a Vertical Magnetic Float Sensor, Horizontal Float Sensor, Stainless Steel Float Sensor, Water Level Controller, Flow Sensor, Pressure Sensor, or a customized sensing solution, Vachan offers a comprehensive range of products designed for reliable liquid level monitoring and industrial automation.

Our sensors are trusted by OEM manufacturers, automation companies, pump manufacturers, distributors, panel builders, and industrial users for their accuracy, durability, and long service life. With a strong focus on quality, technical support, and application-specific solutions, we help customers select the right sensing technology for every requirement.

Contact Vachan today to request a quotation, discuss your application, or explore our complete range of Magnetic Float Sensors and Water Level Sensors. Whether you need a standard product or a customized solution, our team is ready to help you build reliable, efficient, and future-ready liquid level monitoring systems.
