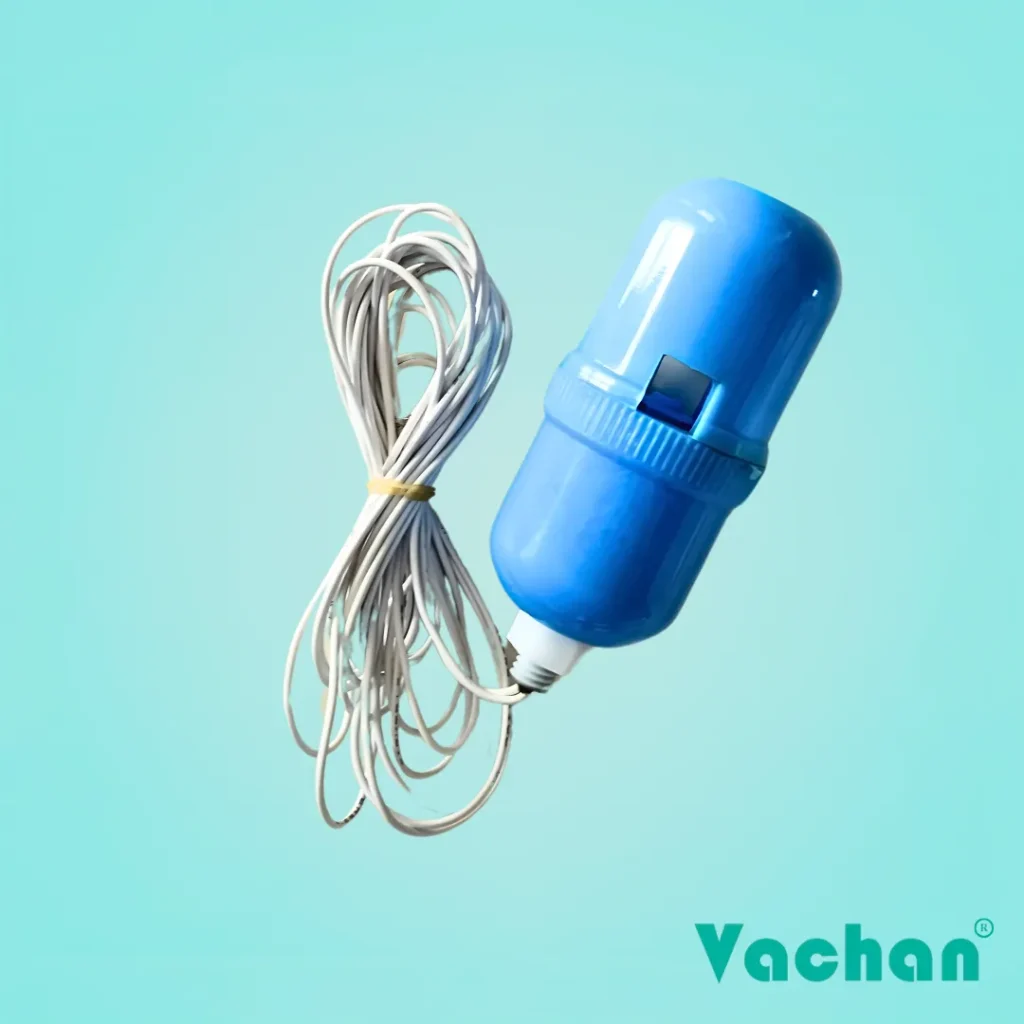

VFS 123 Cable Suspended Float Level Switch

Description

Product Details :

The VFS 123 Cable Suspended Magnetic Float Level Switch is designed for reliable liquid level sensing in water tanks, sump tanks, sewage systems, and industrial applications. Featuring a durable PP housing, PP foam float, 2-meter cable, and magnetic reed switch, it ensures dependable automatic pump and tank level control.

Catalogue No :

VFS 123

HSN Code :

90261020

Availability :

In Stock

125°C Operation

SPST Reed Switch

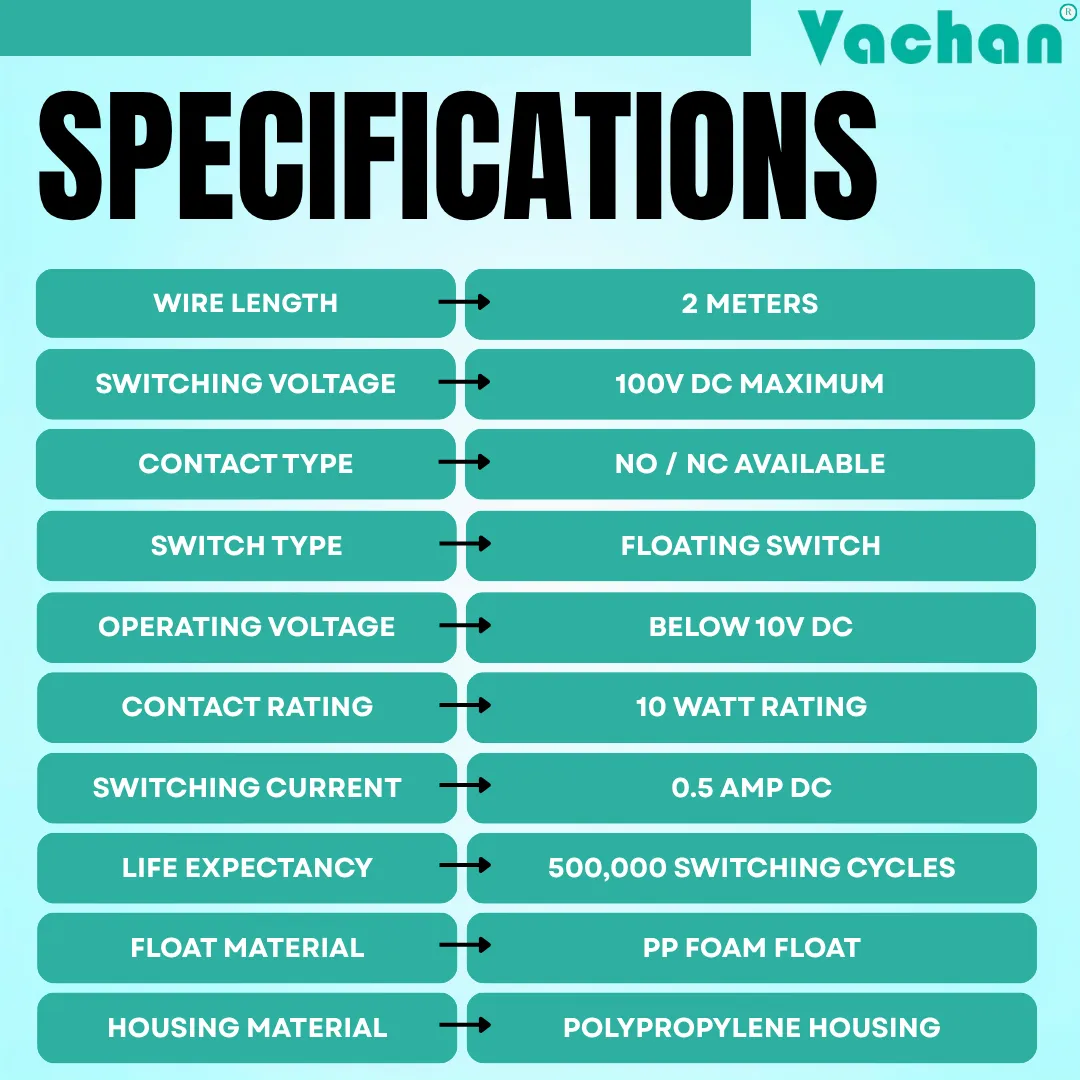

Specifications

Technical Parameter	Specification
Model Number	VFS 123
Sensor Type	Cable Suspended Float Switch
Float Design	Floating Magnetic Float
Switching Principle	Magnetic Reed Switch
Contact Configuration	NO / NC Available
Mounting Position	Cable Suspended
Housing Material	Polypropylene (PP)
Float Material	PP Foam
Cable Length	2 Meters
Maximum Switching Voltage	100 VDC
Contact Rating	10 W
Switching Current	0.5 Amp DC
Operating Rating	<10VDC & <50mAmp DC
Float Diameter	35 mm
Overall Length	93 mm
Potting Material	PU / Epoxy
Mechanical Life	500,000 Switching Cycles
Installation Type	Hanging Installation
Suitable Media	Water & Compatible Liquids
Brand	Vachan®

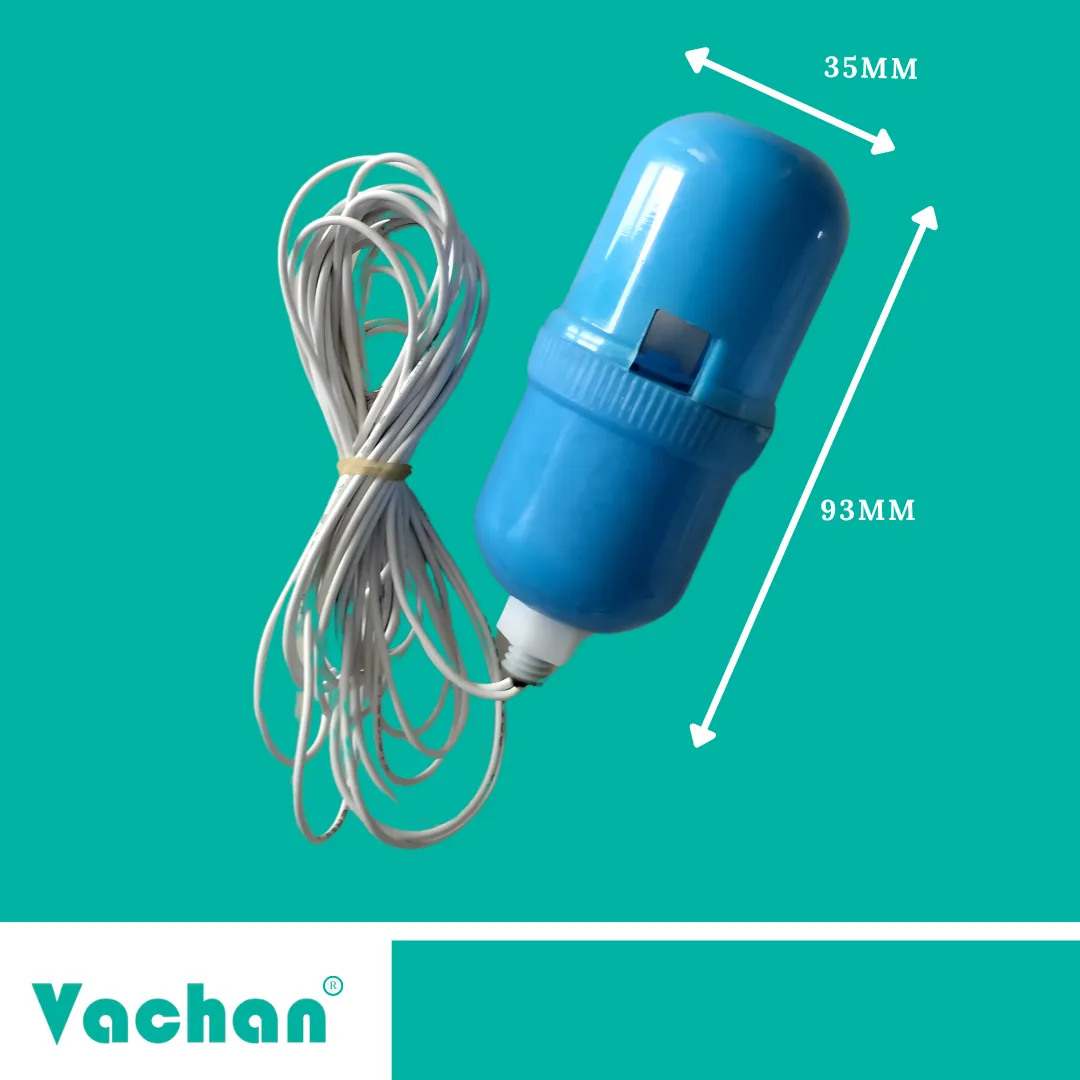

Dimensions

Dimension	Measurement
Overall Length	93 mm
Float Diameter	35 mm
Cable Length	2 Meters
Mounting Type	Cable Suspended
Housing Material	Polypropylene (PP)
Float Material	PP Foam

Features

Cable suspended float design
Durable polypropylene housing
High buoyancy PP foam float
NO/NC contact configuration
Reliable magnetic reed switch
2-meter flexible cable
PU epoxy sealed construction
Long switching life
Lightweight compact design
Easy installation and maintenance

Applications

Overhead water tanks
Underground water tanks
Sump tanks
Sewage treatment plants
Wastewater treatment systems
Pump control systems
Industrial water tanks
Water treatment plants
Chemical storage tanks
Automatic tank filling systems

VFS 123 Cable Suspended Magnetic Float Level Switch for Water Tank & Pump Automation

The VFS 123 Cable Suspended Magnetic Float Level Switch by Vachan® is a dependable solution for automatic liquid level monitoring in water storage and industrial applications. Designed with a rugged polypropylene (PP) housing, high-buoyancy PP foam float, and a durable 2-meter cable, this float switch delivers reliable performance in overhead tanks, underground reservoirs, sump pits, wastewater systems, and industrial storage tanks.

Its cable suspended design allows the float to move freely with changing liquid levels. As the float rises or falls, the internal magnetic reed switch changes state, providing accurate ON/OFF signals for pump controllers, alarms, and automation systems. With NO/NC contact options, the VFS 123 offers installation flexibility for both filling and emptying operations.

The sensor supports a maximum switching voltage of 100 VDC, 10 W contact rating, and 0.5 Amp DC switching current, making it suitable for low-voltage control circuits and industrial automation equipment. The PU/Epoxy sealed construction protects the internal reed switch against moisture and contaminants, ensuring dependable operation and a service life of up to 500,000 switching cycles.

Easy to install and virtually maintenance-free, the VFS 123 is widely used in domestic, commercial, and industrial liquid level control systems. Whether installed in water treatment plants, sewage tanks, chemical storage vessels, or pump automation systems, it provides precise liquid level detection that helps prevent overflow, dry running, and unnecessary pump cycling. Its durable construction and reliable switching make the VFS 123 an excellent choice for OEMs, panel builders, and system integrators seeking long-lasting float level control solutions.

Additional information

Mounting Type	Cable Suspended
Sensor Type	Magnetic Float Sensor
Material of Water Level Sensors	PP
Float Configuration	Single Float
Float Sensor Application	Borewell, Underground Tank, Water Tank
Float Sensor Installation	Cable Mount
Float Switching Type	Normally Closed, Normally Open
Float Switch Brand	Vachan
