Description
Product Details :
The VFS 104 Vertical Reversible Magnetic Float Sensor provides reliable NO/NC liquid level detection with vertical mounting, polypropylene construction, and long-life magnetic reed switch technology for industrial and water tank applications.
Catalogue No :
HSN Code :
90261020
Availability :
In Stock

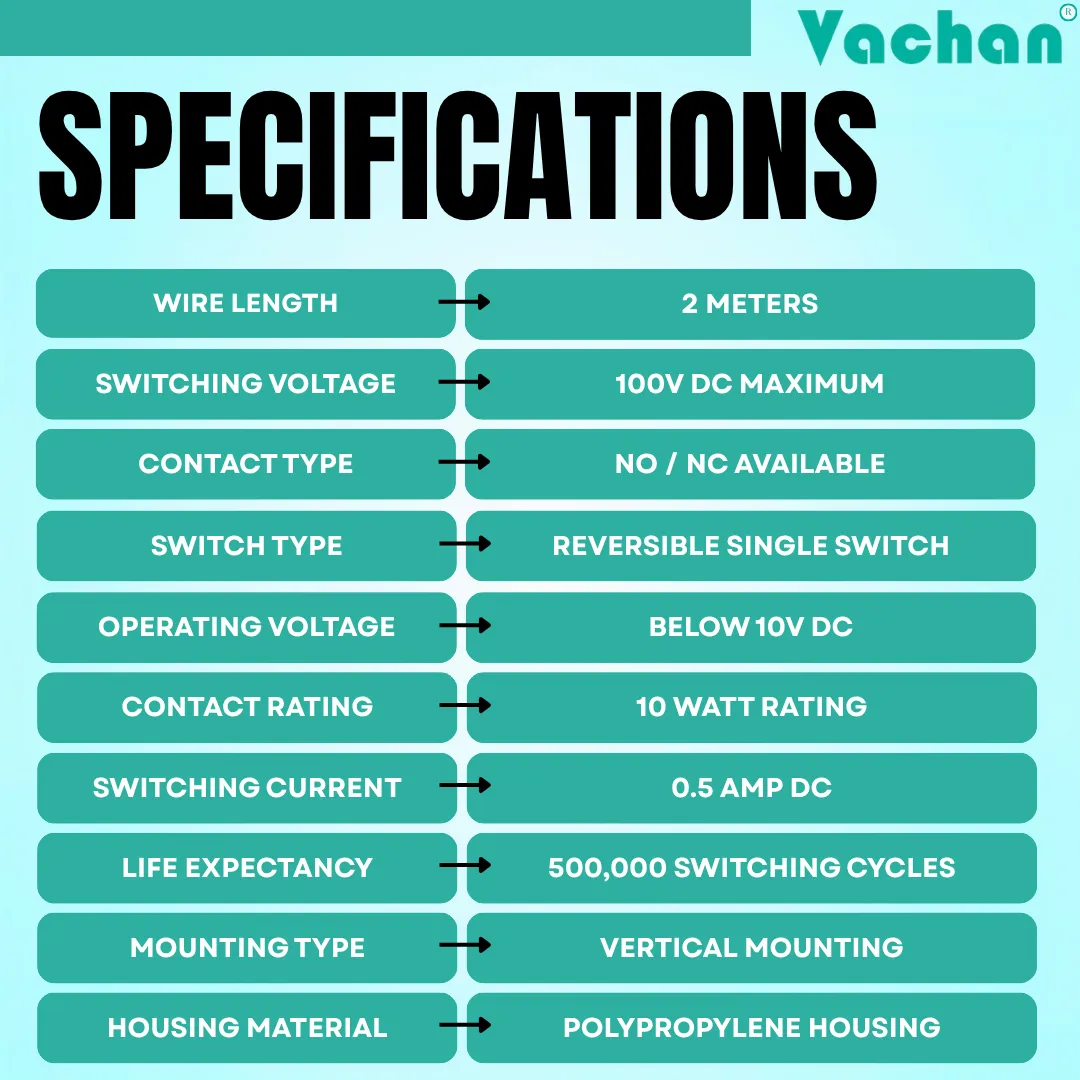

Specifications
| Technical Parameter | Specification |
|---|---|
| Product Model | VFS 104 |
| Sensor Type | Magnetic Float Sensor |
| Float Type | Reversible |
| Mounting Type | Vertical |
| Switching Method | Reed Switch |
| Contact Type | NO / NC Available |
| Switching Type | Reversible Single Switch |
| Maximum Switching Voltage | 100 VDC |
| Operating Voltage | Below 10 VDC |
| Contact Rating | 10 Watts |
| Maximum Switching Current | 0.5 Amp DC |
| Cable Length | 2 Meters |
| Float Height | 24 mm |
| Housing Material | Polypropylene (PP) |
| Float Material | PP Foam |
| Potting Material | PU / Epoxy |
| Expected Switching Life | 500,000 Cycles |
| Suitable Liquids | Water & Compatible Liquids |
| Installation | Vertical |
| Brand | Vachan® |

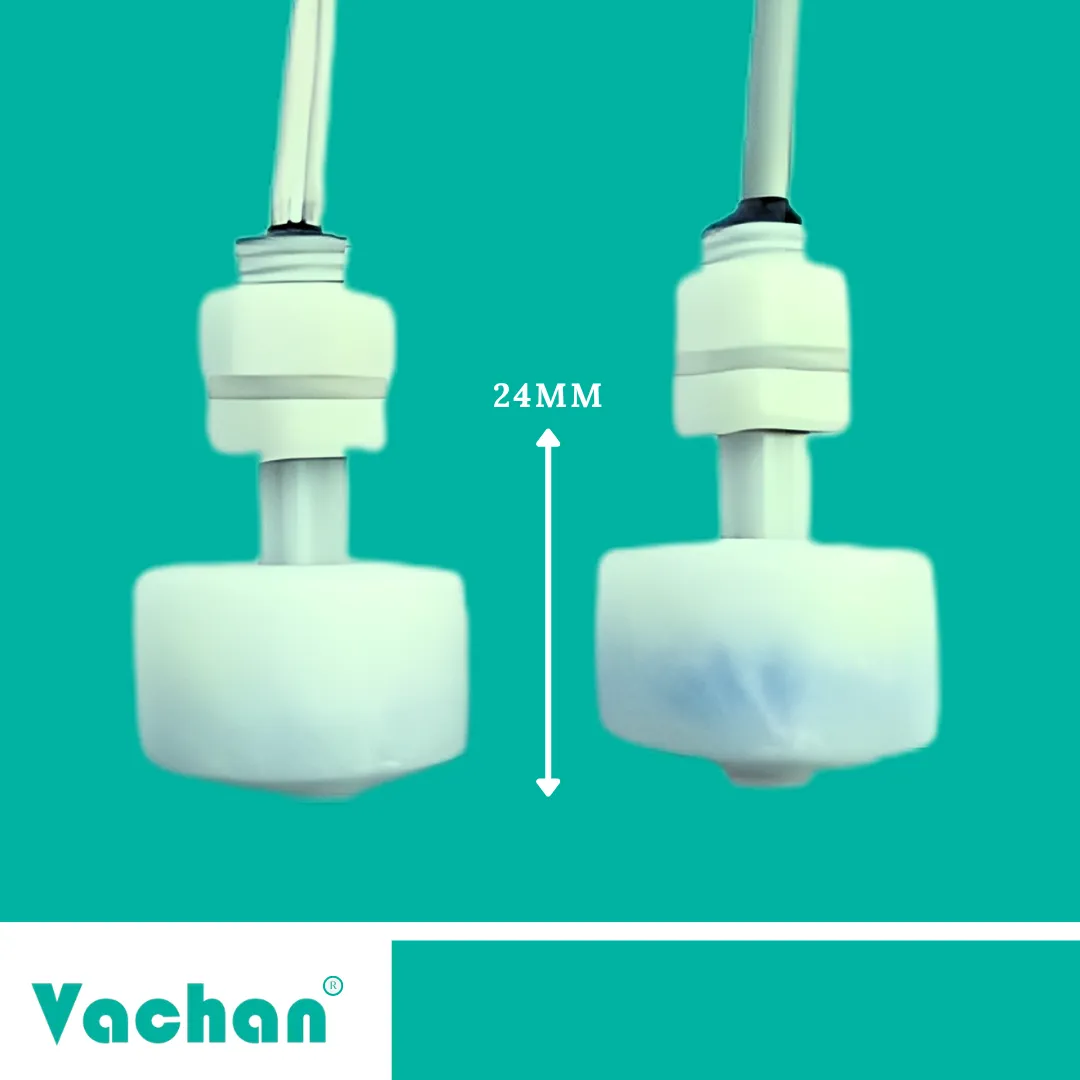

Dimensions
| Parameter | Specification |
|---|---|
| Overall Float Height | 24 mm |
| Mounting Type | Vertical |
| Cable Length | 2 Meters |
| Cable Entry | Top Exit |
| Threaded Mount | Yes |
| Compact Body | Yes |
| Float Design | Cylindrical PP Float |
| Sensor Orientation | Vertical |
Features
- Reversible NO/NC Switching
- Compact Vertical Design
- Durable PP Housing
- Lightweight PP Float
- High Reliability Reed Switch
- Excellent Chemical Resistance
- Long Switching Life
- Easy Vertical Installation
- Low Power Consumption
- Accurate Liquid Level Detection
Applications
- Water Storage Tanks
- Overhead Water Tanks
- Underground Water Tanks
- RO Water Systems
- Pump Control Panels
- Water Treatment Plants
- Chemical Storage Tanks
- Industrial Process Tanks
- Liquid Level Monitoring
- Automatic Tank Filling Systems
VFS 104 Vertical Reversible Magnetic Float Sensor | NO/NC Liquid Level Switch
The VFS 104 Vertical Reversible Magnetic Float Sensor is a compact and highly reliable liquid level sensing solution designed for accurate monitoring and control of water and compatible liquids. Built using a durable polypropylene housing and lightweight PP foam float, this sensor delivers dependable performance even in demanding industrial environments. Its reversible design allows installers to easily configure the sensor for either Normally Open (NO) or Normally Closed (NC) operation by simply changing the float orientation, making it suitable for a wide variety of automation systems.
With a maximum switching voltage of 100 VDC, a 10 Watt contact rating, and a 0.5 Amp DC switching current, the VFS 104 is ideal for pump controllers, water level indicators, tank automation systems, RO plants, and industrial process equipment. The sensor is fully sealed with PU/Epoxy potting, protecting the internal reed switch from moisture and extending its operational life to approximately 500,000 switching cycles.
Its compact 24 mm float height enables installation in tanks with limited space while maintaining accurate liquid level detection. The vertical mounting configuration simplifies installation and ensures stable operation with minimal maintenance. Resistant to corrosion, water, and many industrial chemicals, the VFS 104 is suitable for overhead tanks, underground reservoirs, chemical storage tanks, water treatment systems, and liquid level monitoring applications. Manufactured by Vachan, this float sensor combines reliability, durability, and precision, making it an excellent choice for OEMs, panel builders, automation integrators, and industrial equipment manufacturers seeking a dependable level sensing solution.
